What is a Console Cable? A Guide to Understanding its Purpose and Use

If you’ve ever worked in IT, network engineering, or even set up your own home lab, you might have come across the term “console cable.” Although it may seem like just another connector, the console cable is actually a critical tool in networking and system administration. So, what exactly is a console cable, and why is it so important? Let’s dive into its purpose, types, and how it’s used in networking.

What is a Console Cable?

A console cable is a cable used to connect directly to the console or management port of a networking device (like a router, switch, or firewall) to manage its configuration. This physical connection is often necessary for initial configuration, troubleshooting, or recovering a device when network access isn’t available. Unlike Ethernet cables that carry network data, console cables carry configuration commands between your computer and the device. Sometimes these are referred to as a rollover cable.

Why is a Console Cable Important?

Console cables allow devices to communicate directly with network hardware. If a device’s network connection fails or is in a brand-new, unconfigured state, accessing it via a console cable is typically the only way to gain control. For example, if a router’s configuration is lost or if a firmware update goes wrong, a console cable can provide emergency access to restore functionality.

Common Types of Console Cables

Over the years, console cables have evolved, and there are a few common types you may encounter:

1. RJ45 to DB9 (Serial Console Cable)
   This is a traditional console cable with an RJ45 connector (which looks like an Ethernet connector) on one end and a DB9 connector (a 9-pin serial connector) on the other end. This type was widely used in older Cisco equipment and other network devices.

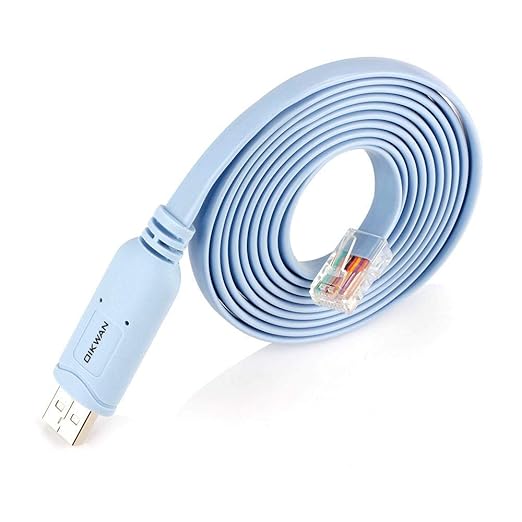

2. USB to RJ45 Console Cable

   Modern laptops and computers often lack a DB9 serial port, so the USB to RJ45 console cable is now a common choice. This cable has a USB connector on one end (for the computer) and an RJ45 connector on the other end (for the network device). It’s popular for newer Cisco, HP, and Juniper devices.
   https://amzn.to/48BeyOw


3. USB to USB Mini- or Micro-Console Cable
   Some newer devices, notably smaller or lower-end switches and routers, may have a USB mini or USB micro console port instead of RJ45. A USB to USB mini- or micro-cable is used in these cases, making it a plug-and-play solution for most modern laptops.

How to Use a Console Cable

A console cable requires a physical connection and a terminal emulation program. Here’s a step-by-step guide on how to use one:

1. Connect the Cable
   Connect one end of the console cable to your computer’s USB or serial port and the other end to the device’s console port.
2. Install Drivers (if needed)
   You might need to install drivers for USB console cables, especially for USB-to-serial adapters. The console cable manufacturer usually provides these drivers, which can also be downloaded online.
3. Open a Terminal Emulator Program
   Use a terminal emulation program, like PuTTY, Tera Term, or HyperTerminal. These programs let your computer send and receive commands to and from the network device.
4. Set the Connection Parameters
   When opening the console session, you’ll need to set certain parameters to ensure compatibility with the device. Common settings include:
   • Baud rate: 9600 (default for most network devices, though some devices may vary)
   • Data bits: 8
   • Parity: None
   • Stop bits: 1
   • Flow control: None
5. Access the Device
   After establishing the connection, you should see a command prompt where you can start configuring, troubleshooting, or managing the device.

When Do You Need a Console Cable?

Console cables are essential tools for network administrators and IT professionals and are used in several scenarios:

• Initial Configuration: When setting up a device for the first time, a console cable provides access to configure IP addresses, security settings, and more.
• Troubleshooting: If a device is unreachable over the network or behaves erratically, console access can diagnose and resolve issues.
• Firmware Updates: Certain updates require a direct connection via a console cable, especially when upgrading a device from an unconfigured or basic state.
• Disaster Recovery: If a device becomes “bricked” or non-functional, a console cable might be the only way to recover it.

Building your own Cable

If you are feeling industrious and want to build your own RJ45 to DB9, here are some instructions.

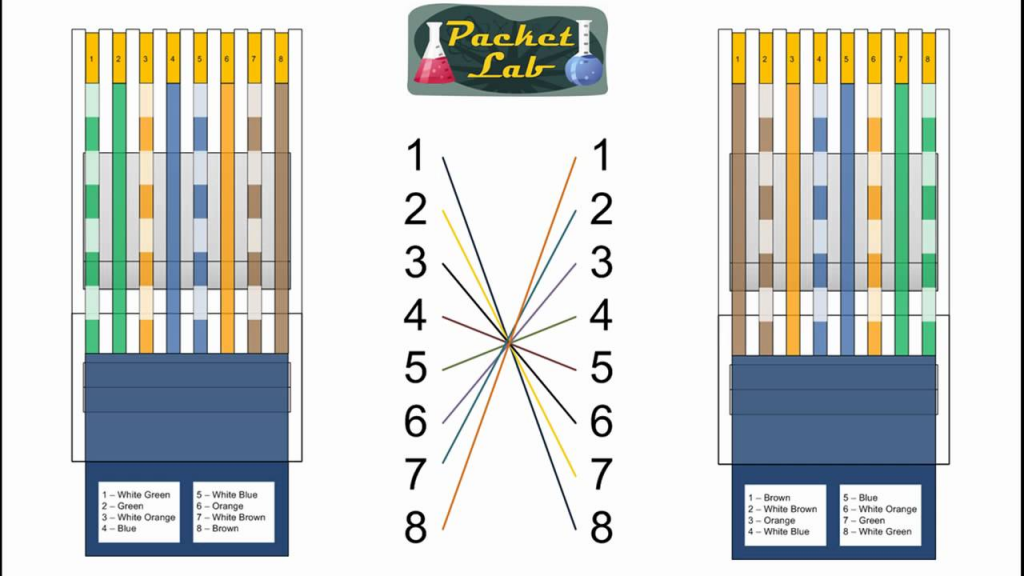

If you want to build your own rollover cable here are the pinouts

The image is from the Packet Lab YouTube Video on making an RJ45-RJ45 rollover cable.
