Understanding Autonomous System Numbers (ASNs) in BGP
In the world of computer networks, ensuring seamless communication across vast distances and through diverse networks is no small feat. The Border Gateway Protocol (BGP) is a cornerstone of this effort, enabling data to traverse the complex web of networks that make up the internet. A critical component of BGP’s functionality is the Autonomous System Number (ASN). But what exactly is an ASN, and why is it so important? Let’s dive in.
What is an Autonomous System (AS)?
Before delving into ASNs, it’s essential to understand the concept of an Autonomous System (AS). An AS is a collection of connected IP networks under the control of one or more network operators that present a unified routing policy to the internet. In simpler terms, it’s a network or group of networks managed by a single entity—such as an Internet Service Provider (ISP), a corporation, or a university.
The Role of ASNs in BGP
BGP, often described as the “postal service” of the internet, manages how packets of data are routed between different ASes. To make this system work, BGP needs a way to identify each AS uniquely. This is where Autonomous System Numbers come into play.
An ASN is a unique identifier assigned to each AS by a Regional Internet Registry (RIR). It’s a numerical label that BGP uses to:
- Identify the source and destination ASes for data packets.
- Track the path that packets take across the internet.
- Facilitate policy-based routing by providing a mechanism to apply and enforce routing policies.
Types of ASNs
ASNs fall into two main categories:
- Public ASNs: These are used for networks that exchange routing information on the public internet. For instance, ISPs or large enterprises connecting to multiple networks.
- Private ASNs: These are reserved for internal use and are not advertised on the public internet. Private ASNs are often used for internal routing within organizations.
Format of an ASN
Originally, ASNs were 16-bit numbers, ranging from 1 to 65,535. However, the growth of the internet necessitated an expansion. Today, ASNs are 32-bit numbers, which significantly increases the available pool. They are commonly represented in two formats:
- Decimal Format: For example, 65536.
- Dot Notation: For example, 1.0 (used for certain 32-bit ASNs). https://www.menog.org/presentations/menog-5/smith-32bit-asn-update.pdf
Why Are ASNs Important?
ASNs play a vital role in ensuring the internet operates efficiently and securely:
- Routing Decisions: BGP uses ASNs to determine the most efficient path for data.
- Policy Implementation: Network operators use ASNs to enforce routing policies, manage traffic flows, and ensure optimal network performance.
- Troubleshooting: ASNs help identify routing issues and pinpoint the location of problems.
- Scalability: By dividing the global internet into ASes, ASNs contribute to a scalable and manageable routing infrastructure.
Real-World Example
Imagine you’re accessing a website hosted in another country. The data from your device traverses multiple ASes—your ISP, upstream providers, and the destination AS. At each step, BGP uses ASNs to ensure your request reaches the correct server and the response finds its way back to you efficiently.
A Glimpse of the Future
As the internet continues to grow, ASNs will remain pivotal in facilitating connectivity and innovation. The expansion to 32-bit ASNs is a testament to the adaptability of the system, ensuring it can meet the demands of an increasingly connected world.

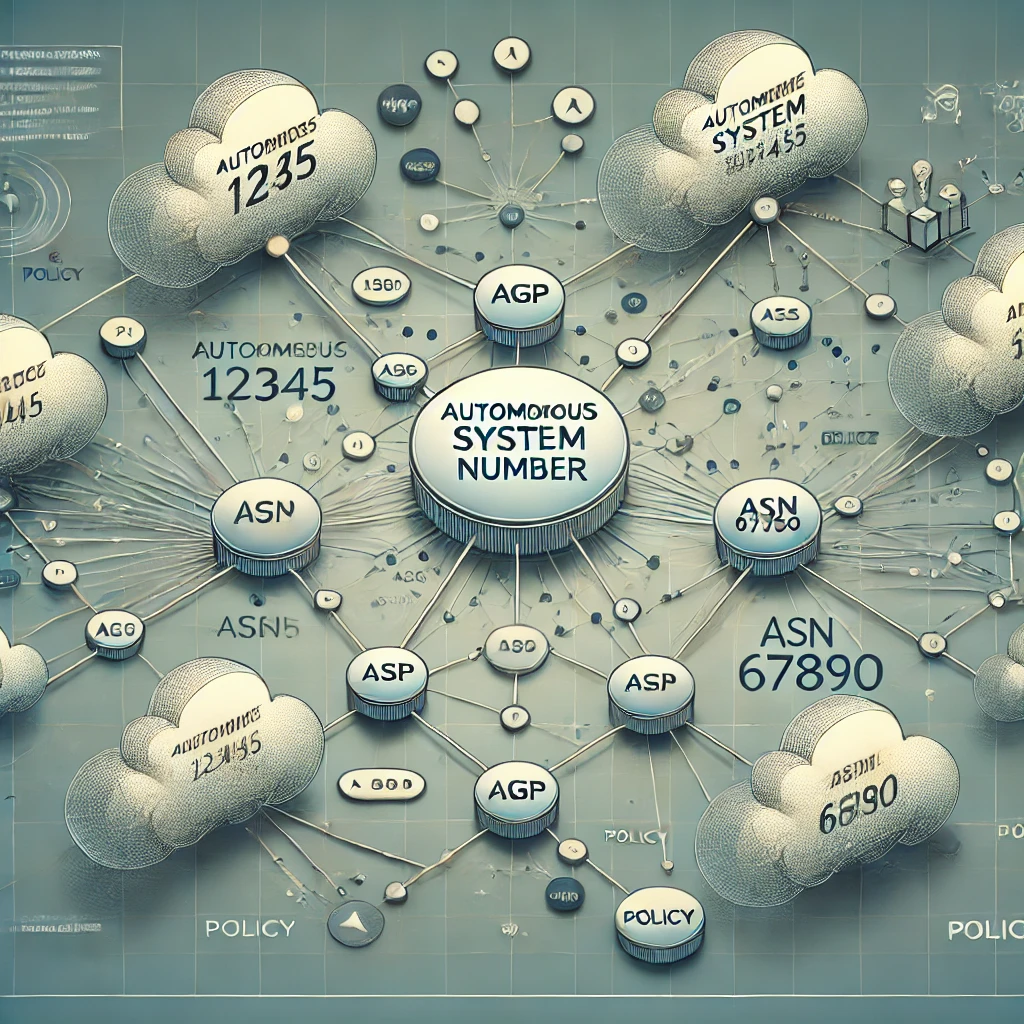

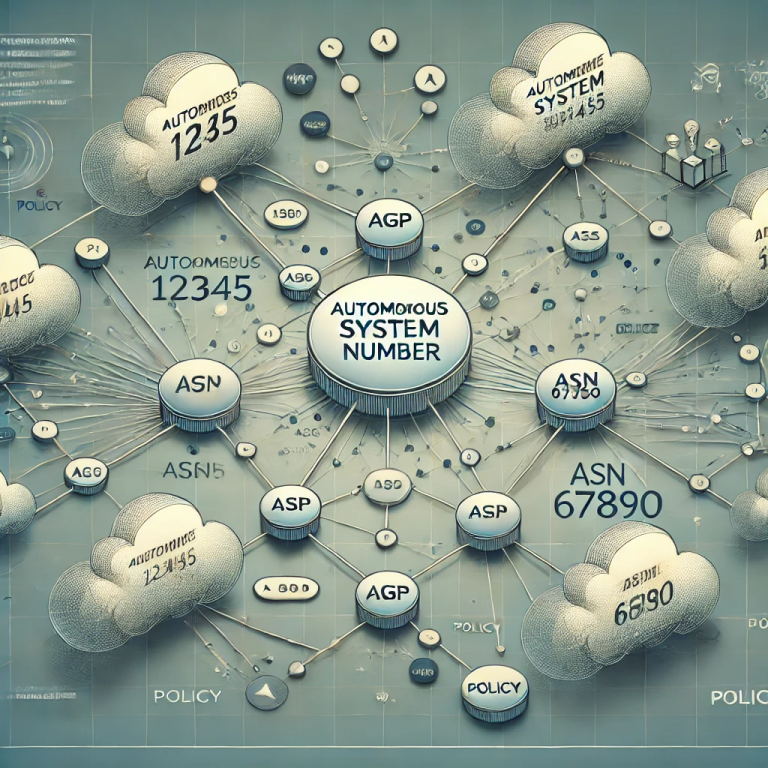

To visualize the concept of ASNs and their role in BGP, here’s a graphic:
In conclusion, Autonomous System Numbers may seem like a small part of the internet’s infrastructure, but their impact is monumental. They are the identifiers that enable seamless global communication, making the internet the indispensable tool it is today.
